What is Civil and Architectural Material Testing?

We provide testing, consulting, and research services for civil engineering materials and geotextiles (such as aggregates, asphalt concrete, ready-mix concrete, steel materials, meshes, etc.) used domestically and internationally. Additionally, we evaluate the safety of building materials like insulation, flooring, and other construction materials used in interior and exterior structures. Our services include testing for fire-resistant doors, fireproof structures, and the fire safety performance of building finishing materials, as well as conducting fire-resistance performance tests.

Civil Materials Testing Services

  • Civil Textile Testing

Target Key Test Items Representative standard

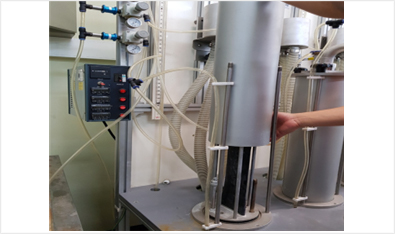

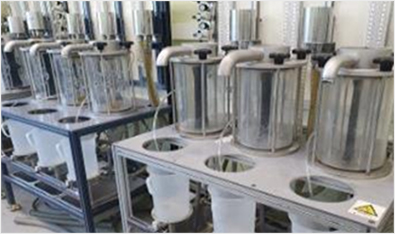

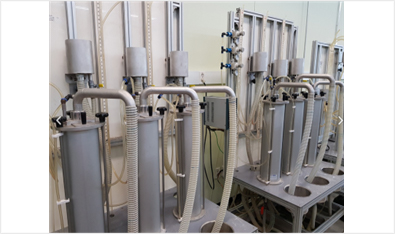

Drainage Materials Tensile strength, drainage performance, puncture resistance, effective pore size, etc. KS K 0940, ASTM D4716, KS K ISO 10319

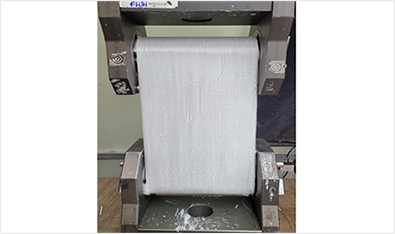

Mats Tensile strength, tensile strain, seam strength, etc. KS K ISO 10319, KS K ISO 10321
Nonwoven Fabrics Cutting strength, cutting elongation, liquid resistance, hydrolysis resistance, etc. KS K 2630, KS K 0743, KS K ISO 12960

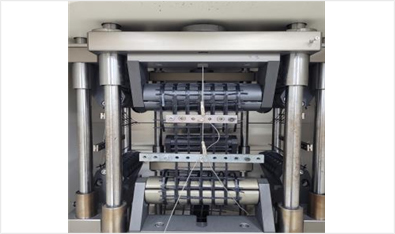

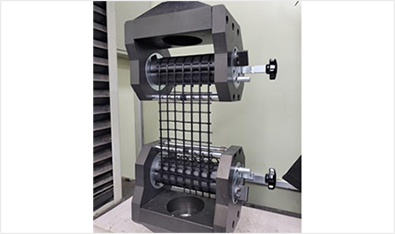

Geogrids Tensile strength, tensile strain, tensile strength at 5% strain, etc. KS K ISO 10319, ASTM D6637, ASTM D4595

  • Construction Materials Testing

Target Key Test Items Representative standard
Aggregates Density and absorption rate, particle size, chloride content, compaction test, etc. KS F 2503, KS F 2504, KS F 2502, KS F 2515, KS F 2312

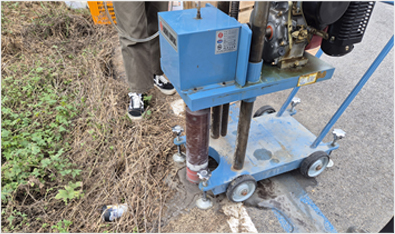

Asphalt Concrete (Asphalt Mix) Core density, thickness, compressive strength, asphalt content (AP), etc. KS F 2353, KS F 2367, KS F 2354

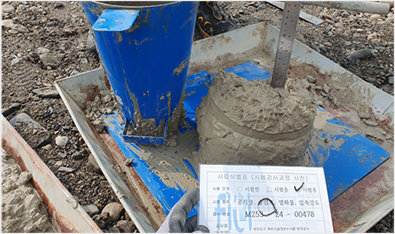

Ready-Mixed Concrete (RMC) Compressive strength, air content, slump, flexural strength, etc. KS F 2405, KS F 2421, KS F 2402, KS F 2408

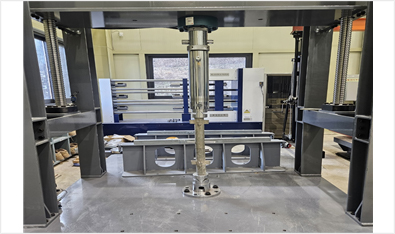

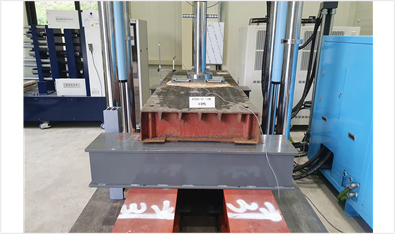

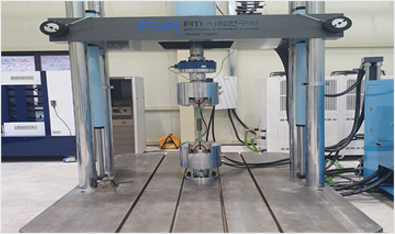

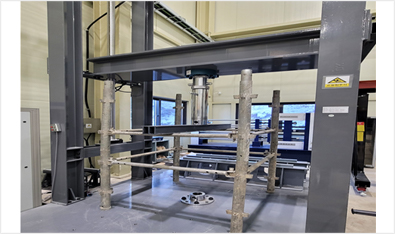

Steel Materials High-strength fatigue test, relaxation, GFRP (Glass Fiber Reinforced Polymer) reinforcement, etc. KS D 0249, KS D7002, KS F ISO 10406-1
Mesh Tensile test, drop test, impact test, fire resistance test, etc. KS F 8081, KS F 8082, KS F 8083, KS F 8084

  • Reliability Evaluation

Target Key Test Items Representative standard
Geogrid Tensile strength, tensile strain, contact strength, workability, direct shear friction, carboxyl group quantification, weight-average molecular weight, material resistance, accelerated creep, etc. RS-KORAS-FITI-009
Strip Fiber Reinforced Material Mass, width, thickness, tensile strength, tensile strain, workability, material resistance, draw coefficient, accelerated creep, etc. RS-KORAS-FITI-024
Civil Textile Drainage Materials Material, mass, width, thickness, tensile strength, tensile strain, drainage performance, effective pore size, vertical permeability coefficient, composite flow capacity, etc. RS-KORAS-FITI-021
Geotextiles Tensile strength, tensile strain, seam strength, puncture strength, direct shear, effective pore size, vertical permeability coefficient, material resistance, accelerated creep, etc. RS-KORAS-FITI-033

  • Ministry of Land, Infrastructure, and Transport Construction Engineering Business Quality Inspection

    • Scope of Quality Inspection Registration: Civil engineering, special materials (textiles, steel materials, aggregates, ready-mixed concrete, asphalt concrete)

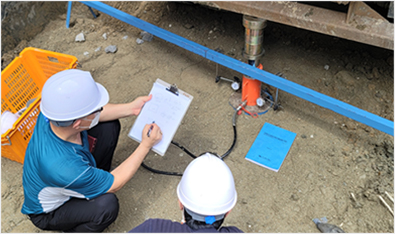

    • Conduct quality inspection tests on various construction materials used in construction sites
    • Provide technical training and consultation to site and quality managers regarding the use of CSI information network
Detailed field Test field note

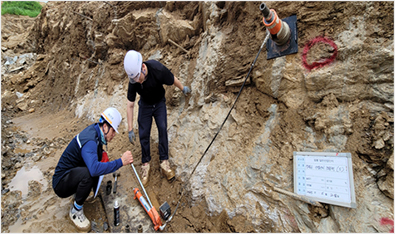

Civil Engineering Field Tensile, compression, and flexural tests, aggregate testing, geotechnical investigation, soil testing, cement testing, concrete testing, asphalt testing, asphalt concrete testing, etc. -
Special Fields Civil textiles / steel materials / aggregates / ready-mixed concrete / asphalt concrete related tests -

Architectural Materials Testing Services

  • Interior and Exterior Building Materials

Target Key Test Items Representative standard

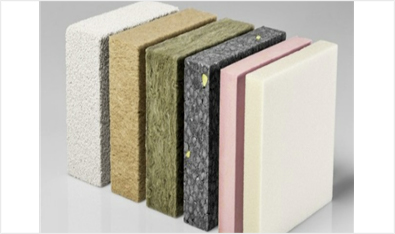

Insulation Materials Thermal conductivity, flame resistance, water vapor permeability, absorption rate KS M ISO 4898

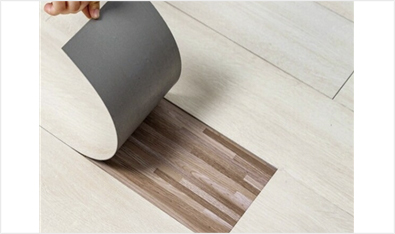

PVC Flooring Indentation depth, length change rate, slip resistance, thermal expansion rate KS M 3802, 안전확인 부속서 67

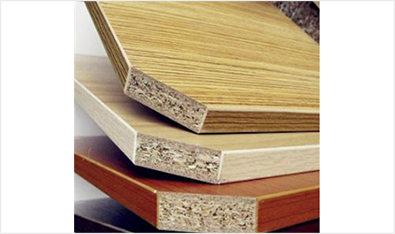

Particle Board and Decorative Wooden Flooring Flexural strength, moisture content, impact resistance, contamination resistance, etc. KS F 3104, KS F 3126

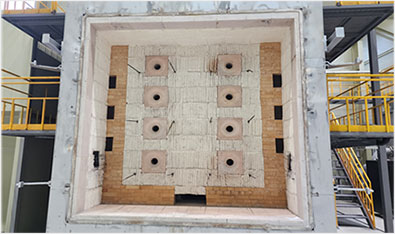

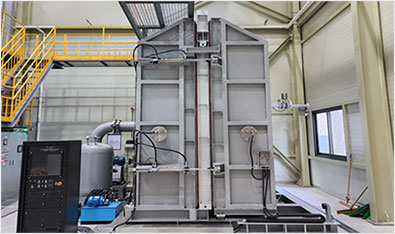

  • Fire Door and Fire-Resistant Structure Testing

Target Key Test Items Representative standard

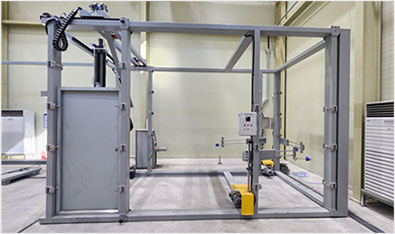

Fire Doors, Fire Shutters, Fire Glass Fire resistance testing, smoke separation testing, door set testing 국토교통부 고시 – 건축자재등 품질인정 및 관리기준 KS F 2257-1, KS F 3109, KS F 2268-1
Fire-Resistant Filling Structures Fire resistance testing
